Series 800

Architectural Awning Window

Engineered for extreme coastal gusts with whisper-quiet cam operations.

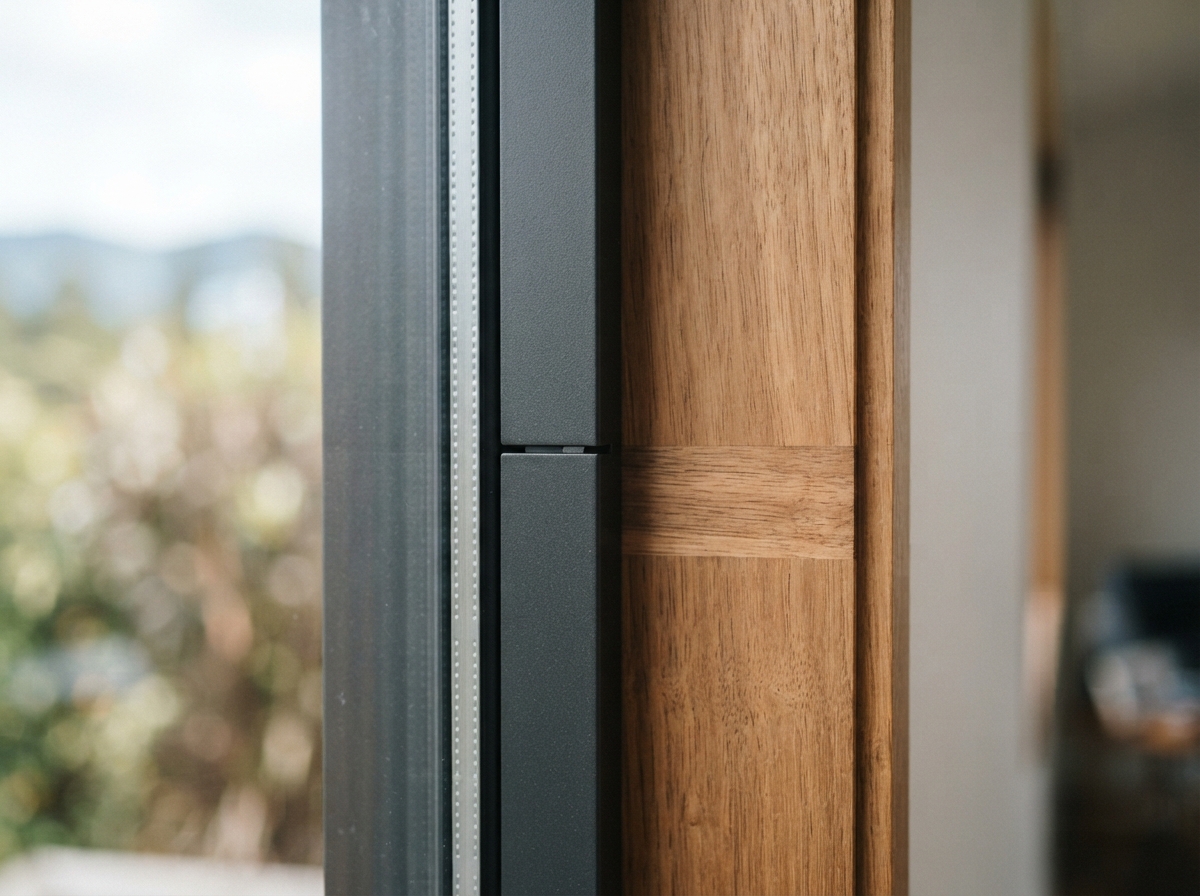

Architectural Awning Window

Architectural Engineering

The Series 800 Architectural Awning Window features an advanced 34mm polyamide thermal strut matrix engineered specifically for Greater Wellington wind zones. Delivering exceptional airtightness and weatherproofing, it seamlessly accommodates double or triple glazed IGUs up to 36mm thickness.

Key Engineering Features

check_circle Multi-point locking cam handles with 316 marine-grade stainless fasteners
check_circle Heavy-duty 4-bar friction stays engineered for Wellington Nor'wester winds
check_circle Discrete perimeter drainage baffles preventing coastal wind whistle
check_circle Full compatibility with automated chain actuators for high clerestory windows

Technical Specifications

Thermal System: Polyamide Thermal Strut (34mm)
Typical U-Value: 1.7 - 2.1 W/m²K (Whole Window)
Glazing Capacity: 24mm to 36mm IGU Double or Triple Glazed
Wind Zone Compliance: Extra High (EH) / Specific Engineering Design (SED) NZS 4211
Water Penetration: 900 Pa (Severe Coastal Exposure)
NZBC H1 Compliance: verified Full Compliance (Zone 1 - 6)
tune Livewire Reactive Simulator

NZBC Clause H1 Thermal Compliance Calculator

Real-time whole-window R-value modeling against Greater Wellington Zone 4 minimums

verified NZBC H1 PASS
Calculated Performance
R0.56 m²K/W Whole Unit
Zone 4 Minimum: R0.46
Indicative Unit Budget NZD $6,500 – $8,400 Excludes delivery & site installation
Transfer Spec to Quote arrow_forward
Architectural Estimating

Specify in Your Project

Our Petone estimating team reviews architectural drawings, window schedules, and wind zone assessments daily.

Request Schedule Pricing arrow_forward call Call +64 4 568 2888

• CAD DWG and BIM files available upon request

• NZBC Clause H1 compliance calculations

• Nationwide commercial delivery available

Visit Us in Petone

Full Scale Showroom Samples

Test the smooth glide of Series 800 multi-sliders and examine our 25µm bronze anodised sample bars.
